Length Width Thick Volume
4’6″ 20 1/4″ 3 1/4″ 43 liter
4’8″  21 1/2″  3 7/16″ 50 liter
4’10” 22 5/8″ 3 3/16″ 60 liter
5’0″ 23 1/8″ 3 7/8″ 65 liter
5’2″ 24″ 4″ 72 liter

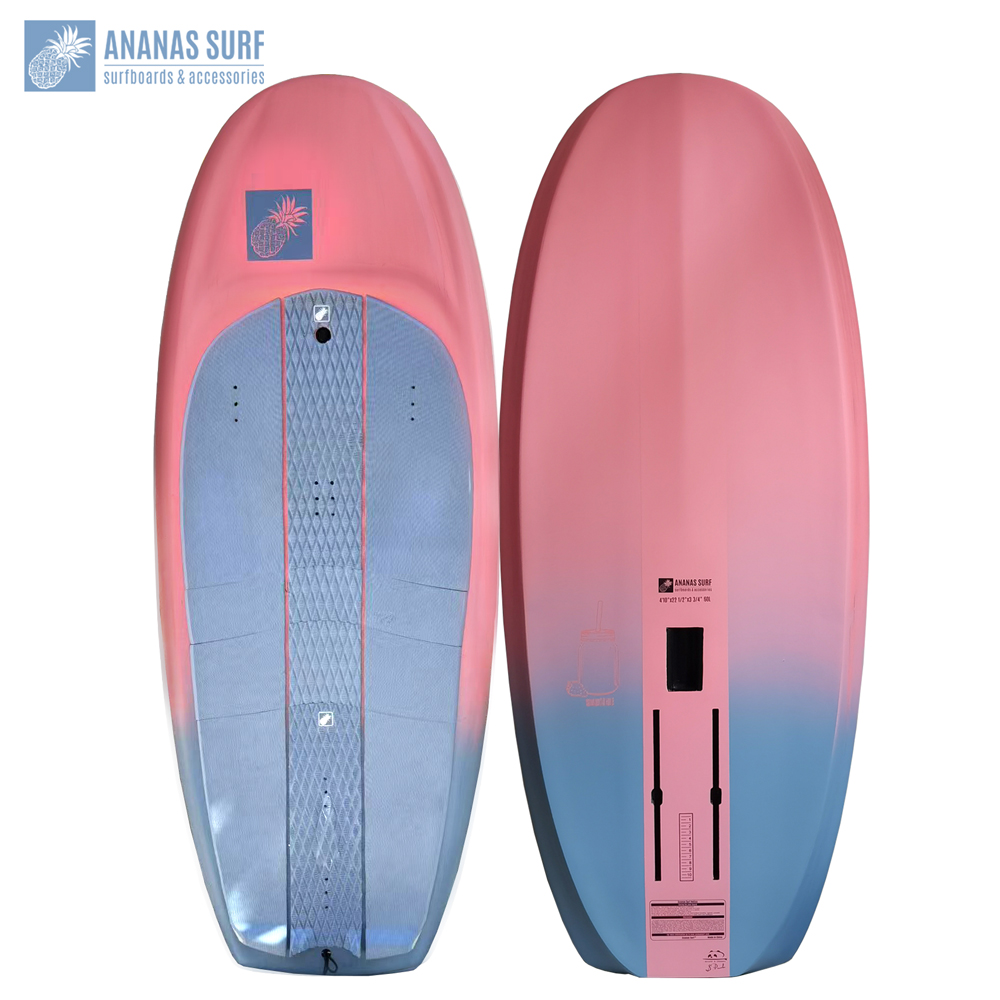

Ananas Surf “Smoothie” Carbon Wing Board.

This board the main board in our wingboard line. Smoothie, enough volume for easy start on flat water and light choppy conditions, with round squash tail, it provides stability on start and responsiveness, and maneuverability. It also help you micro pumping, and good choice for advanced riders. Additionally, the foil mount track are work well with medium aspect and HA small size hydrofoil wings .

The boards feature a slight concave deck bringing comfort and control. The progressive and straight rocker line allows for better in-flight stability. The sharp bottom rail profile and double concave hull shape will help you be up and flying in no time, and you won’t be unsettled when occasionally hitting the water or during touchdown. Most importantly, the HD Foam Carbon+Bamboo Construction gives the boards a strong resistance all while maintaining a lightweight.

The board is equipped with a full pad, inserts for three foot-straps, front V-strap, rear strap, and the Twin-Tracks system for full compatibility.

  • EPS Core with 2 carbon stringers
  • Carbon+Bamboo sandwich construction
  • Double concaved nose bottom
  • Round rails with sharp passing into the bottom
  • Anti-slip deck pad
  • Strap holes for self-tapping screw
Length Width Thick Volume
4’8″ 22″ 3 1/2″ 55 liter
5’0″ 24″ 3 5/8″ 66 liter
5’4″ 25″ 3 3/4″ 75 liter
5’10” 26″ 4″ 92 liter
6’0″ 27″ 4 1/2″ 110 liter

Ananas Surf “Pancake” Carbon Wing Board.

This board is part of our wingboard line. With its wide shape, large volume, and square tail, it provides stability from side to side, as well as responsiveness and maneuverability. It also has an easy and smooth transition to flight, which will help you improve your skills from your first steps in wingfoiling. Additionally, the foil mount box are moved back designed to work well with larger size hydrofoil wings.

The boards feature a slight concave deck bringing comfort and control. The progressive and straight rocker line allows for better in-flight stability. The sharp bottom rail profile and double concave hull shape will help you be up and flying in no time, and you won’t be unsettled when occasionally hitting the water or during touchdown. Most importantly, the HD Foam Carbon+Bamboo Construction gives the boards a strong resistance all while maintaining a lightweight.

The board is equipped with a full pad, inserts for three foot-straps, front V-strap, rear strap, and the Twin-Tracks system for full compatibility.

  • EPS Core with wood stringer
  • Carbon+Bamboo sandwich construction
  • Double concaved nose bottom
  • Round rails with sharp passing into the bottom
  • Anti-slip deck pad
  • Strap holes for self-tapping screw

DE Crossover

Length Width Thick Volume
5’4″ 20 1/2″ 3 13/16″ 60 liter
5’6″ 21 1/4″ 4 3/16″ 70 liter
5’8″ 22″ 4 1/2″ 80 liter
5’10” 23 3/8″ 4 7/8″ 95 liter
6’0″ 24″ 5″ 105 liter

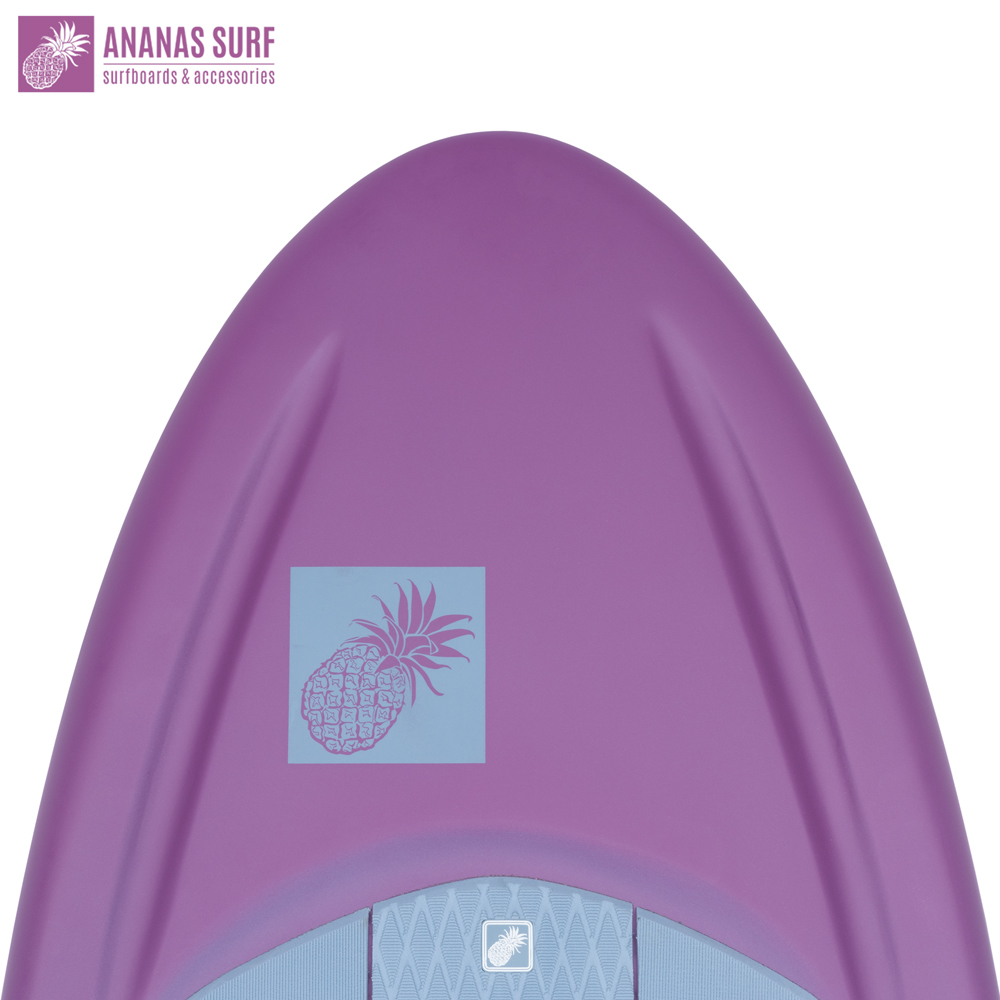

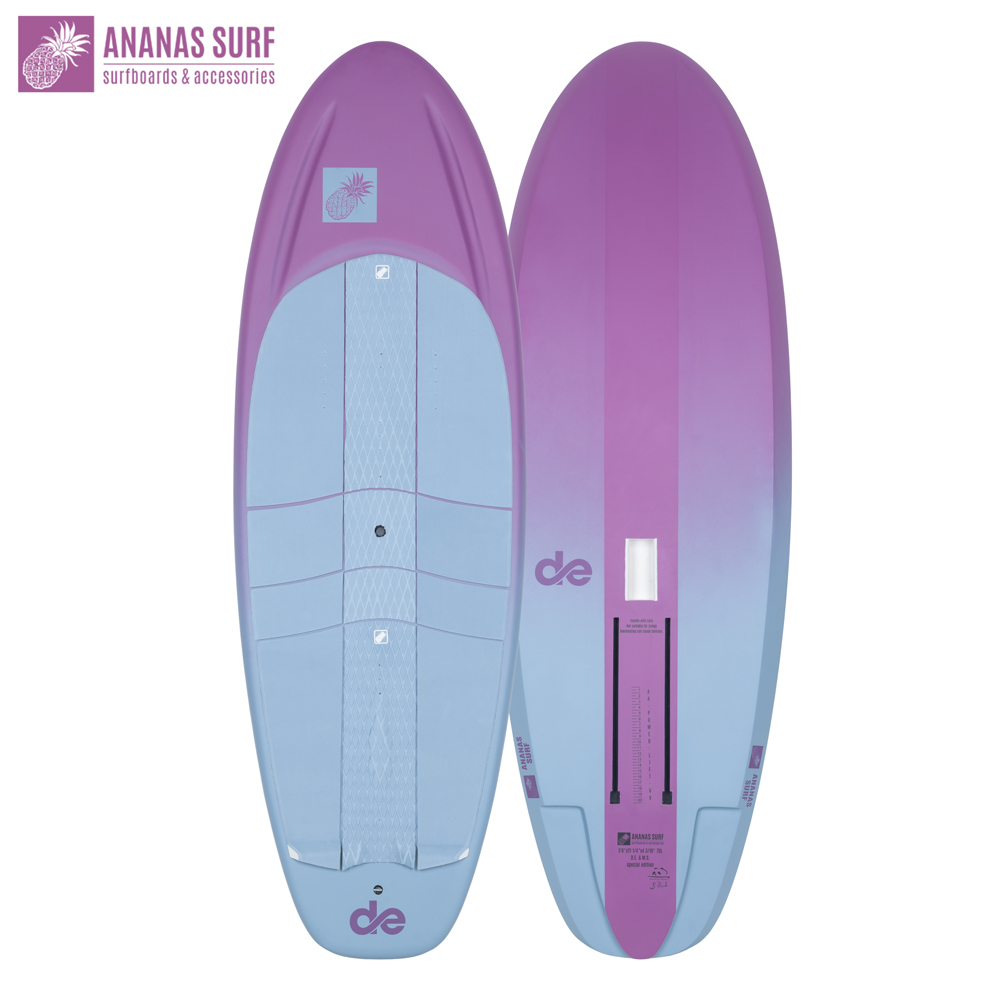

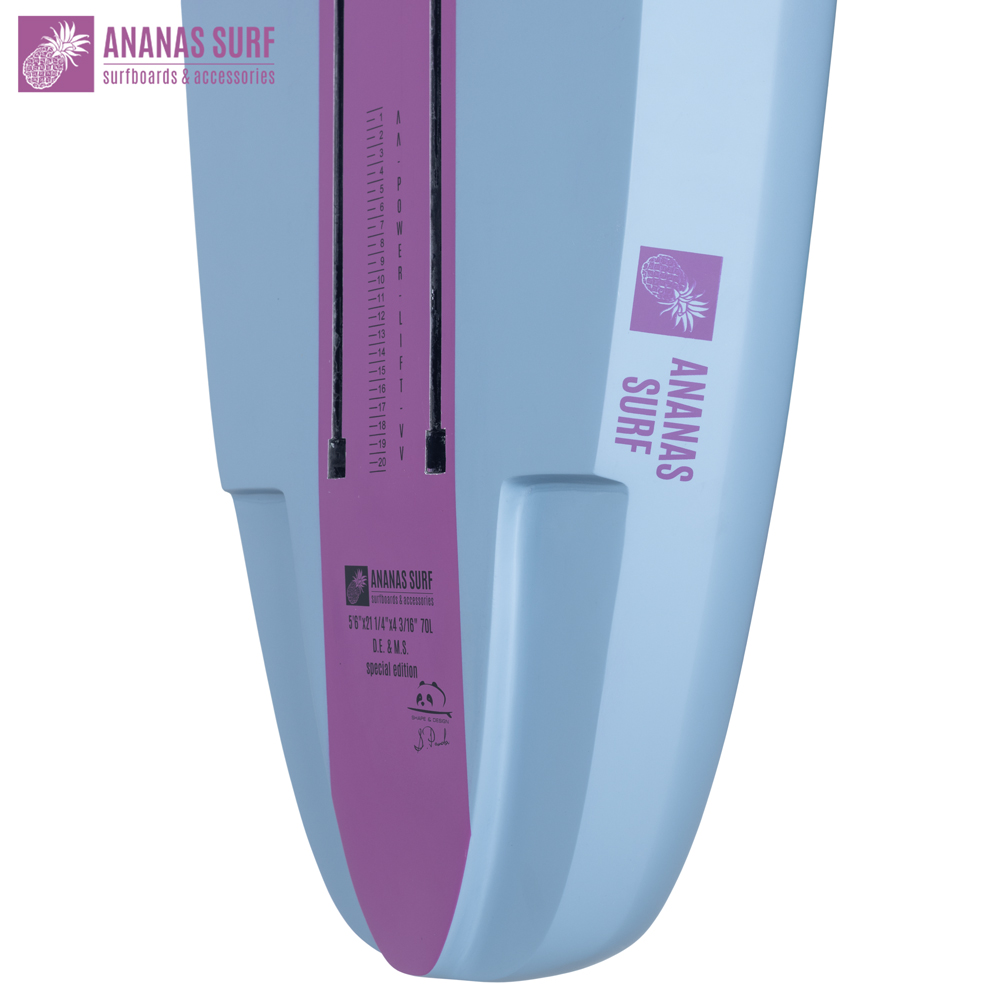

Ananas Surf “DE” Crossover Wing Board – A New Addition to Our Wingboard Line.

This board is a collaboration between Dmitry Evseev and Michail Soloveikin, designed for use with parawings. It has a narrow shape with a large volume, providing extra speed and stability, as well as excellent responsiveness and maneuverability. The medium size makes it easy to pump on small choppy waves and allows you to start in weaker conditions.

Additionally, the foil mounting box is moved forward to work well with high-aspect hydrofoil wings. This ensures optimal performance and control while flying.

The boards feature a slight concave deck bringing comfort and control. The progressive and straight rocker line allows for better in-flight stability. The sharp bottom rail profile and double concave hull shape will help you be up and flying in no time, and you won’t be unsettled when occasionally hitting the water or during touchdown. Most importantly, the HD Foam Carbon+S glass Construction gives the boards a strong resistance.

The board is equipped with a full pad, inserts for three foot-straps, front V-strap, rear strap, and the Long Twin-Tracks system for full compatibility.

  • EPS Core with 2 carbon stringer
  • Carbon+PVC foam on stand area sandwich construction
  • Double concaved nose bottom
  • Round rails with sharp passing into the bottom
  • Anti-slip deck pad
  • Strap holes for self-tapping screw

NWB -New Win Booster

Length Width Thick Volume
5’2″  18 5/8″ 4 1/16″ 55 liter
5’5″ 19 1/2″ 4 3/8″ 65 liter
5’7″ 19 15/16″ 4 3/4″ 75 liter
6’0″ 20 5/16″ 4 7/8″ 85 liter
6’2″ 21 1/4″ 5 1/8″ 95 liter

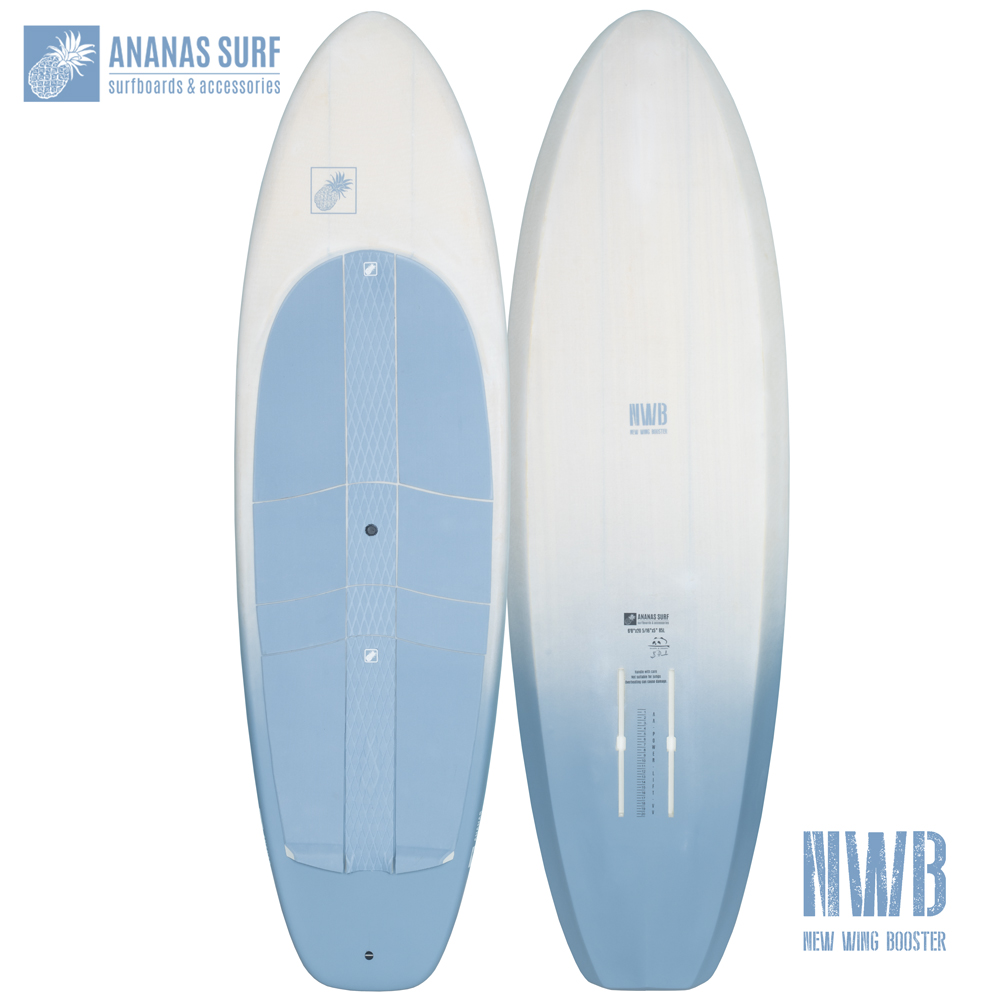

Ananas Surf “NWB” Midlength Wing/Parawing Foilboard – the best choice for light wind days.

After six months of testing different construction materials, Kevlar coloring methods, and shape-refining prototypes—experimenting with variations in length, width, and thickness for stability and speed gains in light wind conditions for winging and parawinging—we are thrilled with the result: the Ananas Surf New Wing Booster Midlength foilboard.

It’s impressively light and playful, weighing just 4.8 kg for the 65L version and 5.5 kg for the 85L.

The design takes inspiration from our downwind “Banana Eel” board and blends it with the DE Crossover. Our goal was to create a board with more speed and volume than the DE Crossover, and more stability in light winds than the “Banana Eel.” Designed for parawings, this board features a narrow outline and thick profile, delivering ample volume for extra speed and stability. It starts easily from small waves and offers smooth maneuverability. Its medium size makes pumping on small, choppy waves effortless and allows for easy starts in weaker conditions.

Additionally, the foil mounting box is positioned further forward to optimize performance with high-aspect hydrofoil wings, ensuring excellent control and stability while flying.

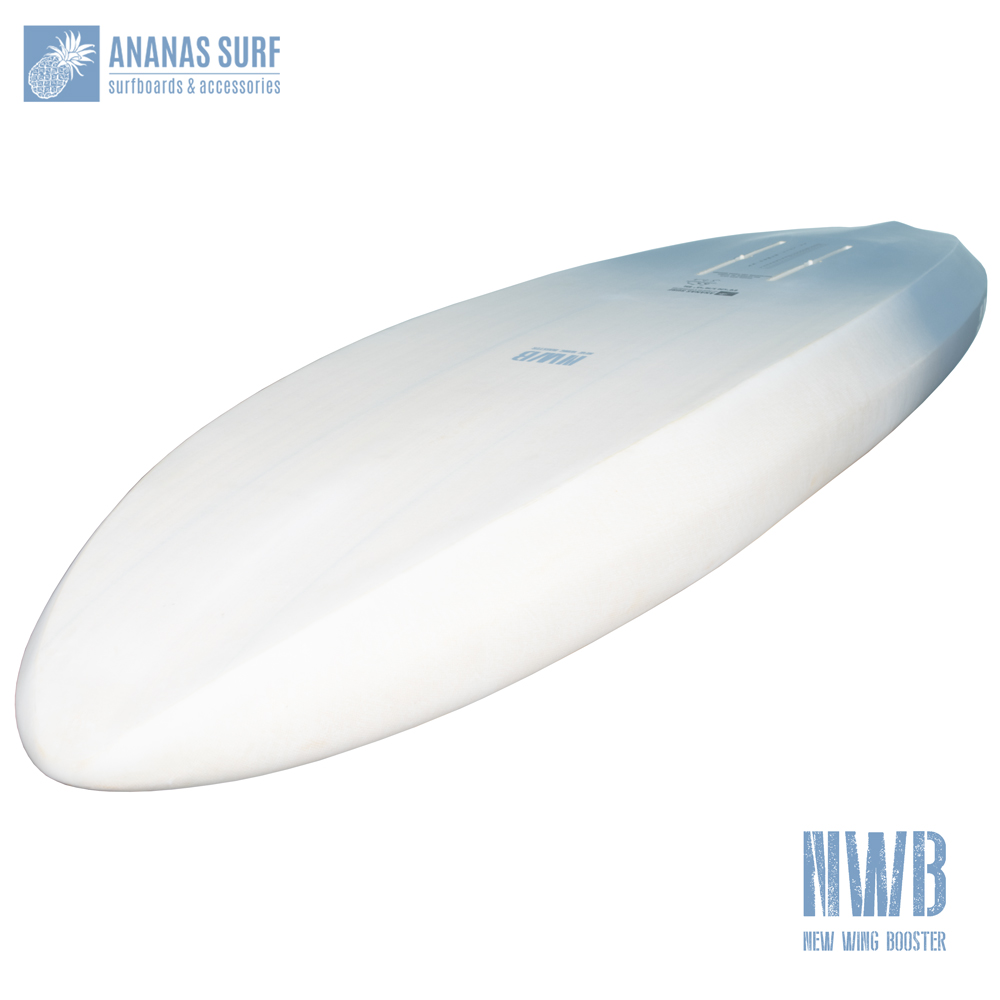

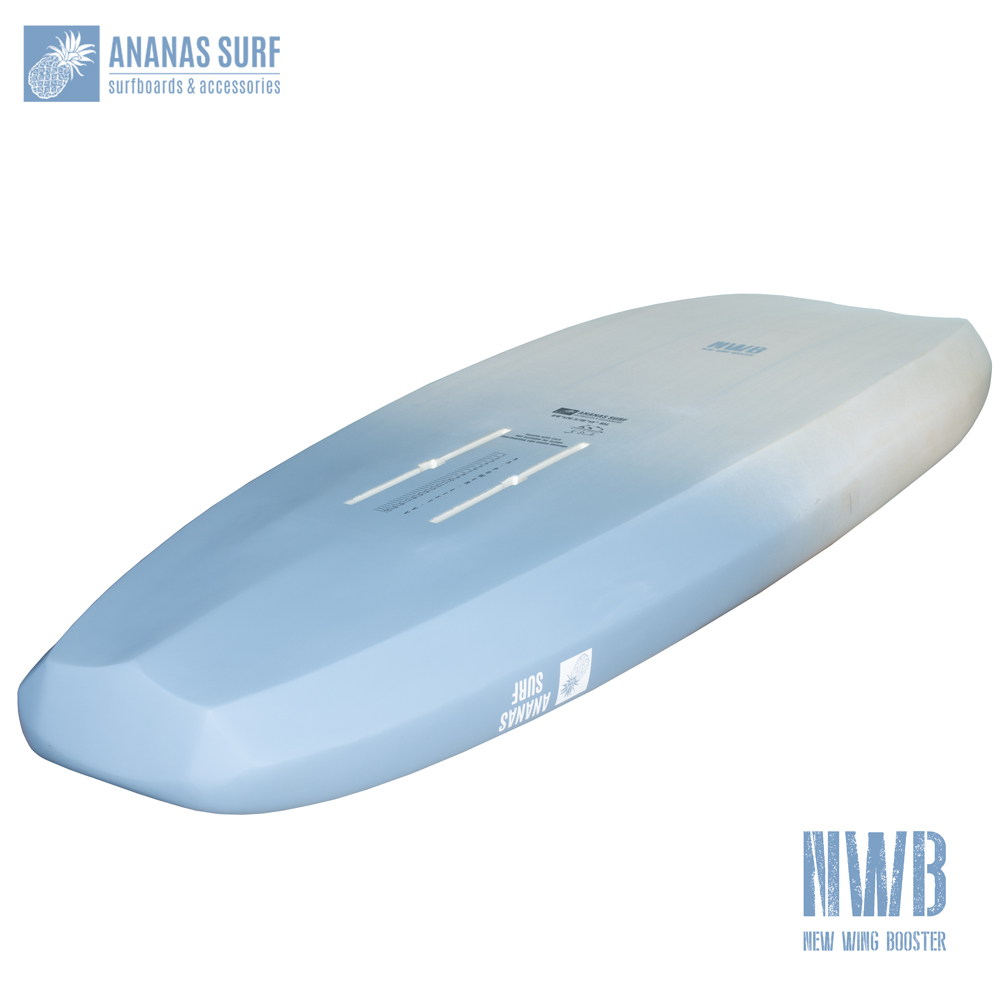

The bottom shape incorporates a slight double concave in the nose, a single concave through the center, and a narrow V in the tail, providing comfort and precise control. A progressive, straight rocker line enhances in-flight stability. The sharp bottom rail profile and tail V-shape get you up and flying quickly and help maintain composure during the occasional water touch or touchdown.

Built for durability, the board features a full Kevlar construction with S-glass and bamboo reinforcement in the standing area for enhanced strength.

It comes equipped with a full deck pad and a US Box Twin-Tracks system for full compatibility.

Construction Summary:

  • EPS Core with 2 carbon stringer
  • S glass+ Bamboo sandwich construction on standing area
  • Double concaved nose bottom
  • Round rails that sharpen toward the bottom
  • Anti-slip deck pad

Do you want to buy it now? Contact us or buy in China online on Aliexpress!
